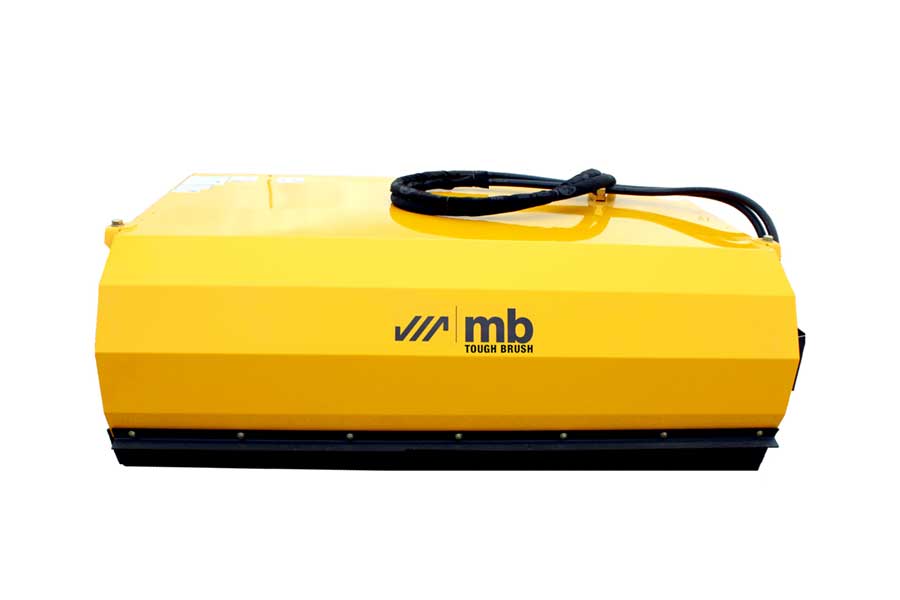

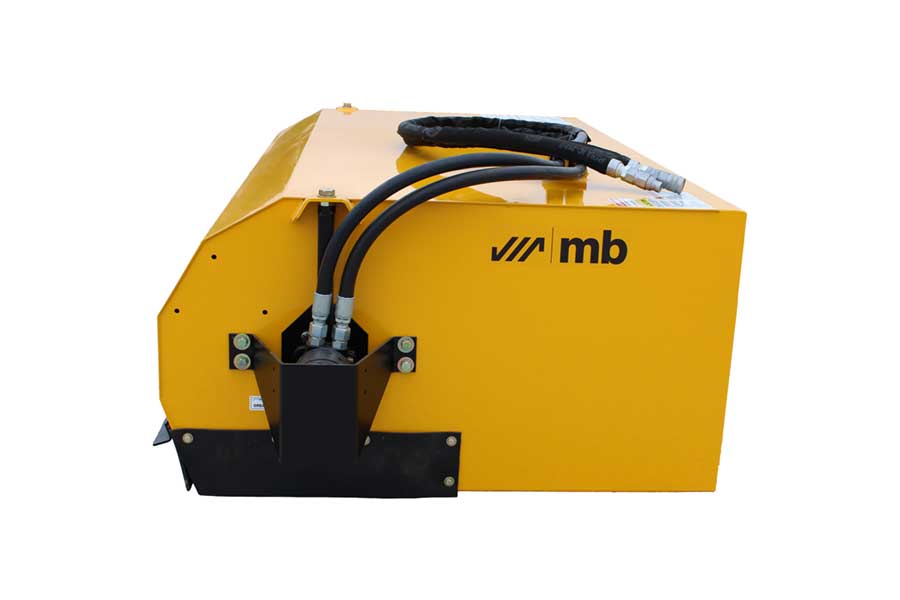

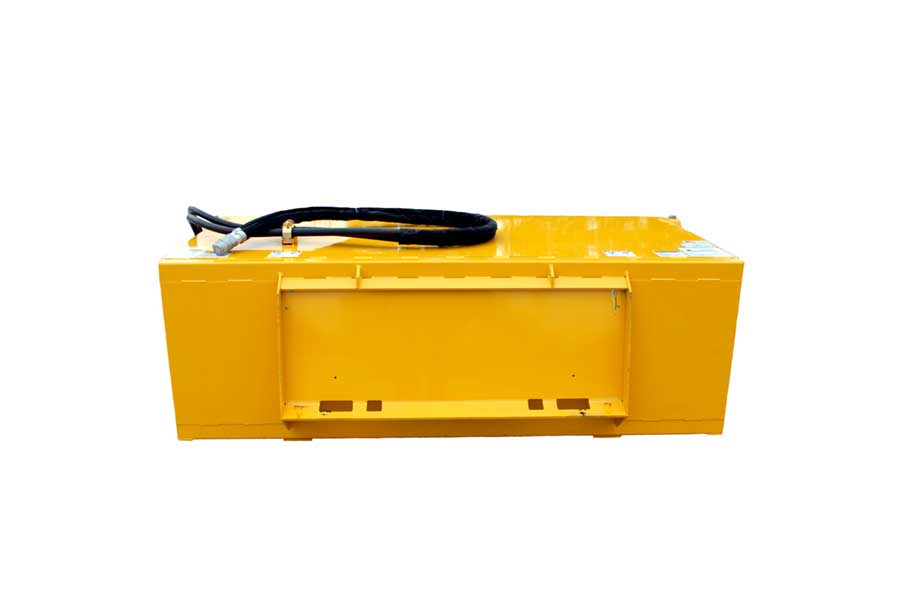

FLB

Now Available through Werk-Brau

Highlights

• Hydraulically driven rotary pick-up broom

• Brush and core assembly can be removed from frame without disconnecting hoses from drive motor(s)

• Brush is lifted by means of the prime mover

• Brush hopper has heavy duty, self-aligning, flange style bearings support the broom core

• Hopper is dumped by using the loader bucket dump function

Equipment

• Sweeping Widths Available:

  5', 6', 7'

• Hopper Capacity:

  5’ – 13.2 cu. Ft.
  6’ – 15.8 cu. Ft.
  7’ – 18.2 cu. Ft.

• Brush Diameter:

  25"

• Core Diameter:

  6 3/8"

• Broom Speed:

  up to 200 RPM, dependent on prime mover

• Drive:

  Hydraulic

• Options Available:

  Low Flow
  Drive Motor
  Sprinkler System
  Sight Indicators
  Gutter broom(s)
