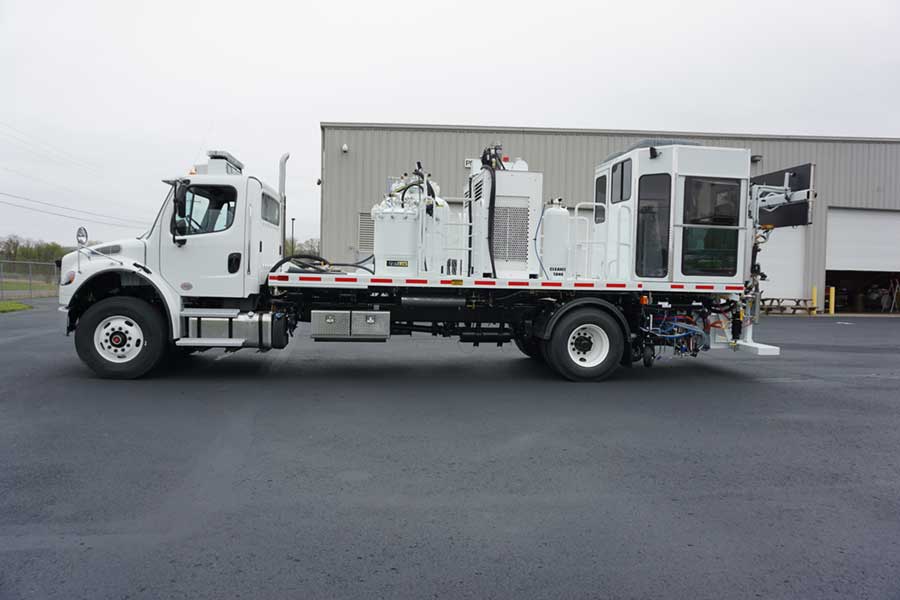

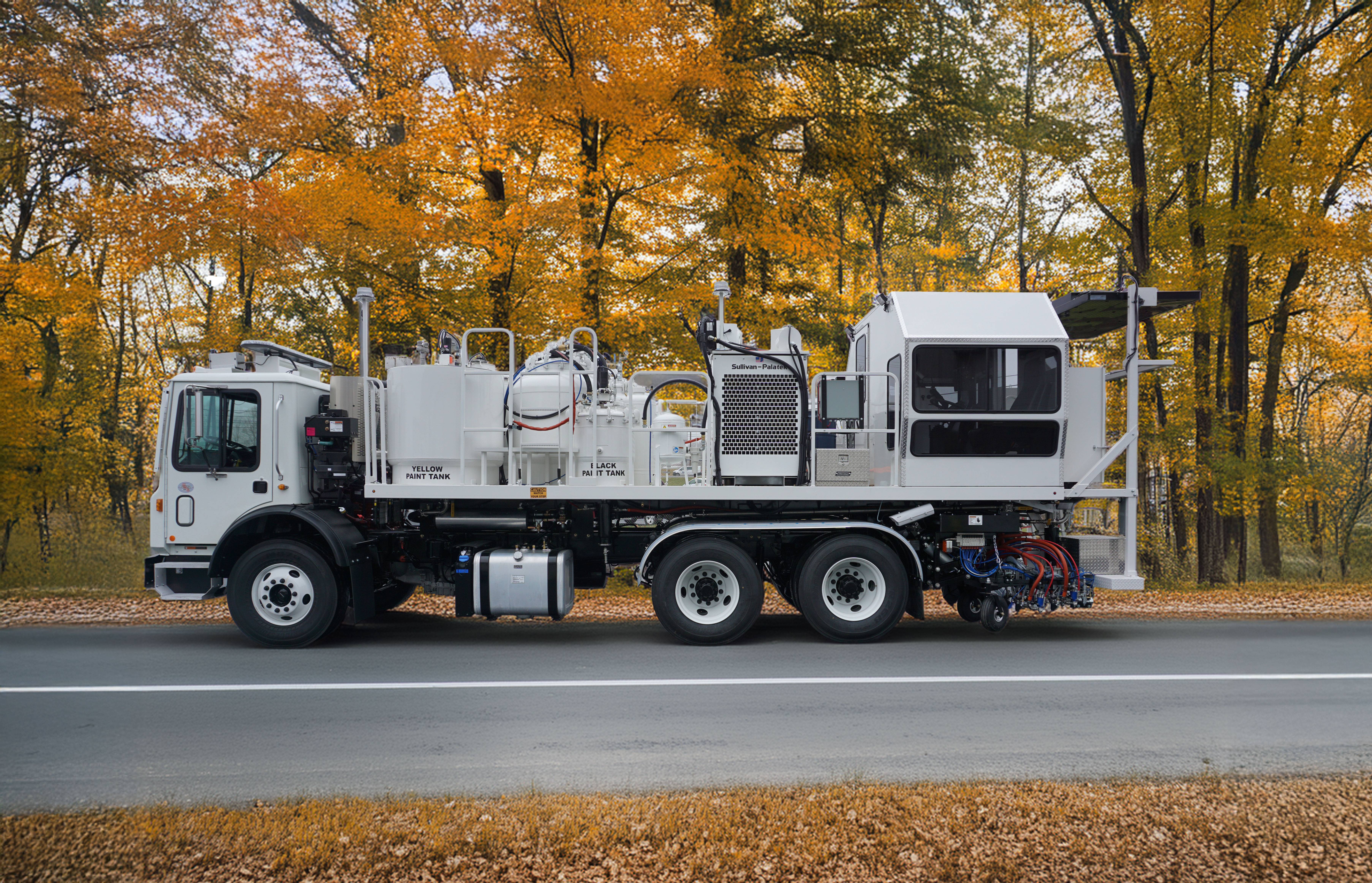

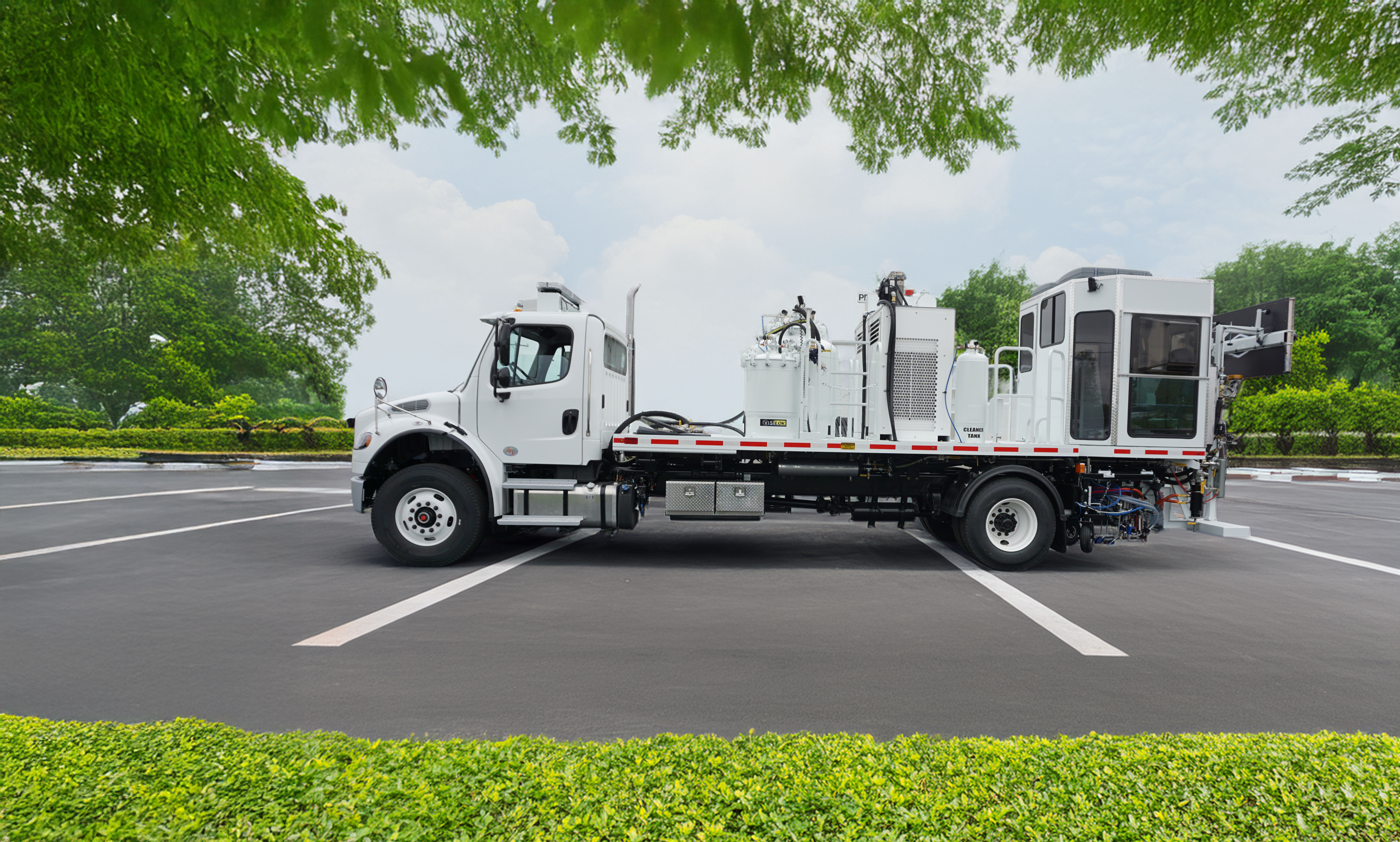

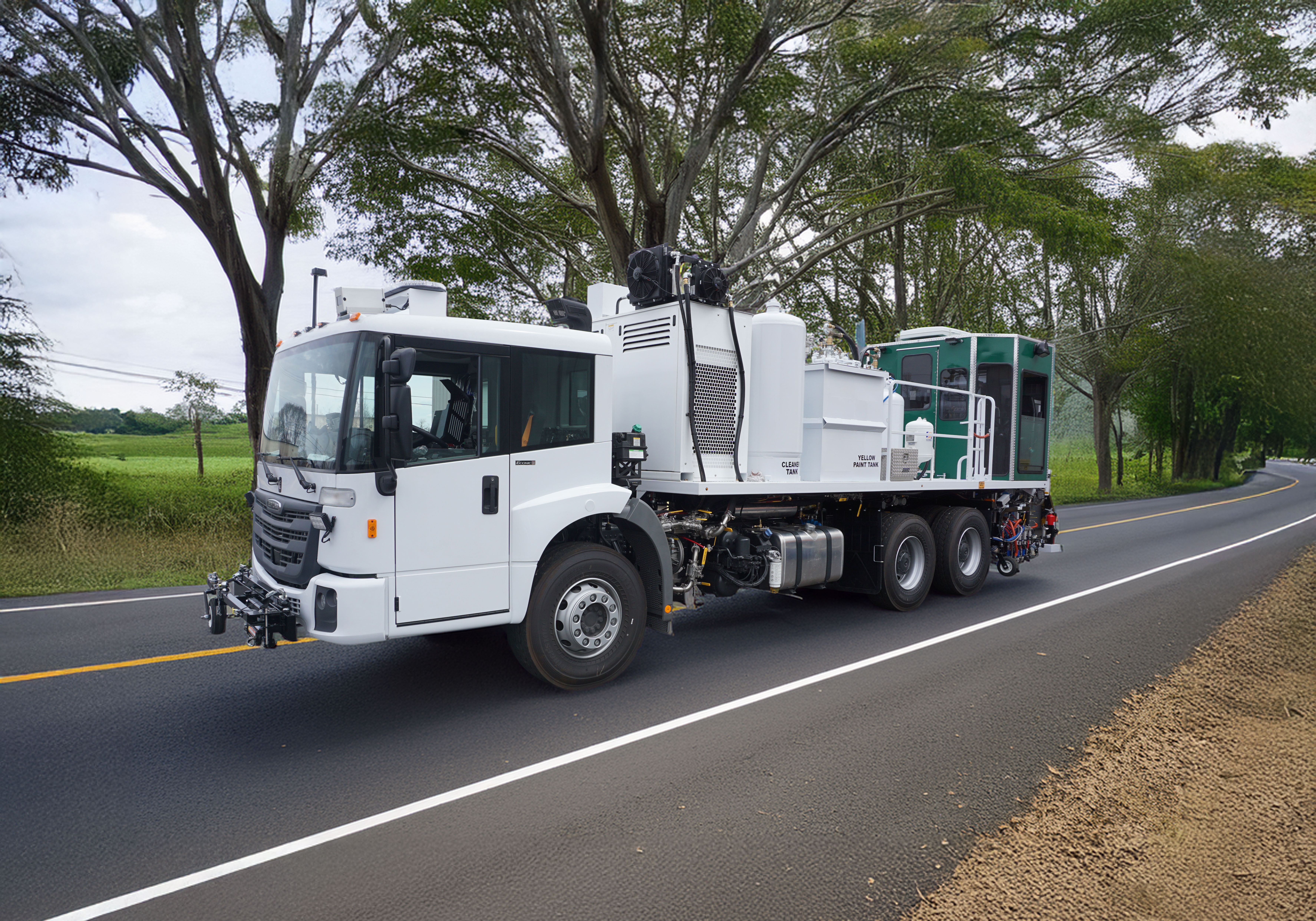

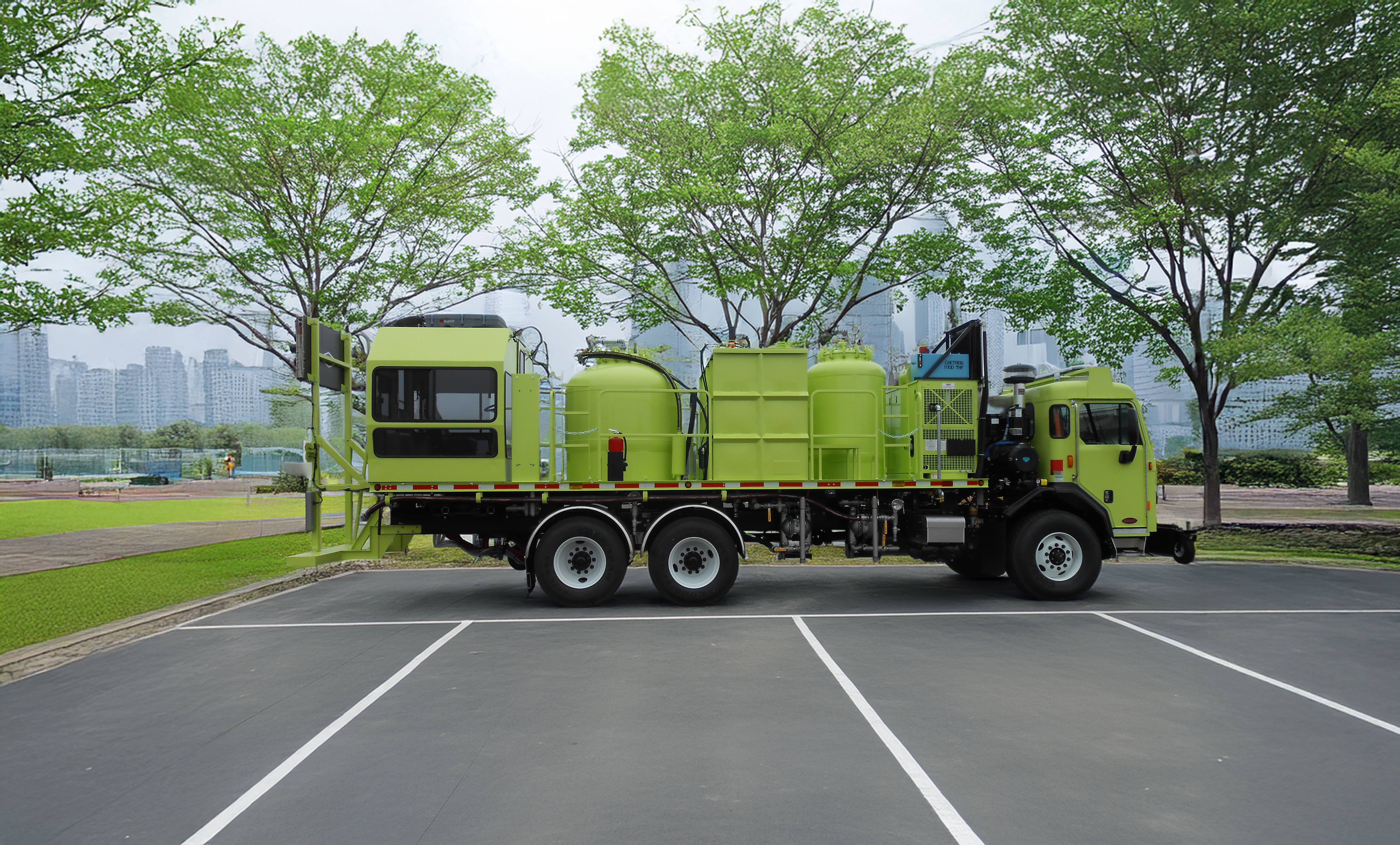

Pumper

The MB Pumper is an air-atomized paint pavement marking system which uses diaphragm pumps for paint delivery and atomizing air for paint spray. Paint is loaded into non-pressure stainless steel round/rectangular, or paint-manufacturer-supplied tote tanks by diaphragm pumps from a paint source. Paint is then delivered to the paint spray guns by diaphragm pumps. Inside the air atomized paint guns, atomizing air is injected into the paint stream, atomizing the paint into fine droplets.  For optimal performance, a «flush-on-the-fly» gun tip flush system is supplied to clean the paint tips with cleaner solution and air purge. Lighter non-pressure tank design allows more paint to be carried on a chassis of equal GVWR compared to Pressure Pot units with ASME pressure tanks. When using tote tanks, loading is as simple as lifting the tote onto the deck and connecting the paint discharge directly to the diaphragm pump.

Highlights

  • Pumper system – Maximize Payload and Performance with Custom Options
  • Configurable guidance options including left and right-side guidance camera system, optical sight, laser, and hydraulic pointer and more
  • Flexible control systems with Skipline, handheld remotes, and joystick operation
  • Gun height adjustment and insullated paint lines ensure crisp, clean application
  • Gun systems from Graco and Kamber, available with optional skip timers from Skipline and Epic

Benefits

  • Simple to operate and maintain – Easy to clean tank
  • Optimized performance across a wide range of vehicle speeds and paint viscosities
  • Choice of permanent or tote tanks for flexible configurations
  • Platform layout designed for efficient workflow and service access
  • Precise control of paint delivery and atomizing pressure for consistent results

Technical Data

  • Paint Guns:

    Kamber 38-15

  • Glass Bead Guns:
    Kamber 90HO
  • Material Tank Type:
    Stainless steel non-pressure round tanks with hydraulic agitator
More technical data
