HTP

Highlights

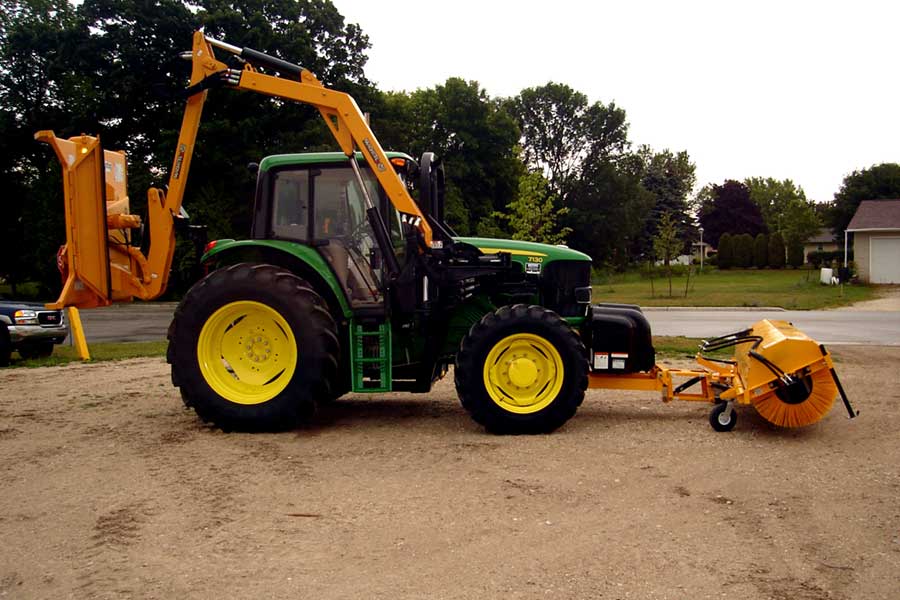

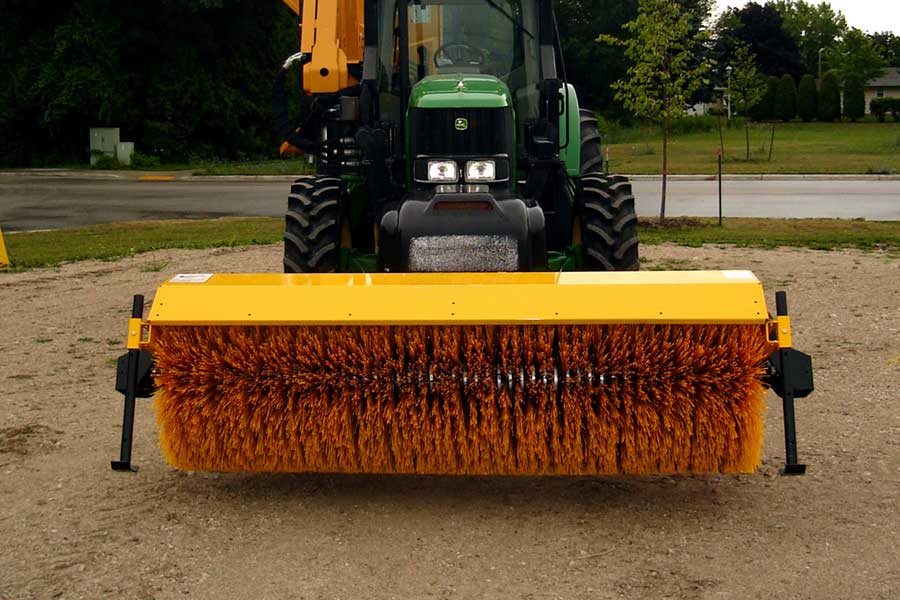

This hydraulic broom with parallel arms is for tractors and versatile for many applications. The HTP is ideal for removing or clearing snow, dirt, debris and grass.

  • Hydraulically driven rotary angle broom.

  • Standard with storage stands

  • Parallel arms on top and bottom allow broom to “float”

  • Self aligned bearings, with grease-able pillow block

  • Refillable core with flat wafers

Equipment

  • Sweeping Widths Available:

    6', 7', 8'

  • Brush Diameter:

    32"

  • Core Diameter:
  • Broom Speed:

    up to 200 rpm

  • Drive:

    Hydraulic

  • Min. Hydraulic Flow:

    12 GPM (Single Standard Motor)

  • Max. Hydraulic Flow:

    20 GPM (Single Standard Motor)

  • Angle Control:
  • Mounting:
  • Options Available:

    Dirt Deflector
    Electric/hydraulic swing and lift system
    Sight Indicators
    Sprinkler System
    Independent Hydraulic System
    Reserving Valve
