MB4

Highlights

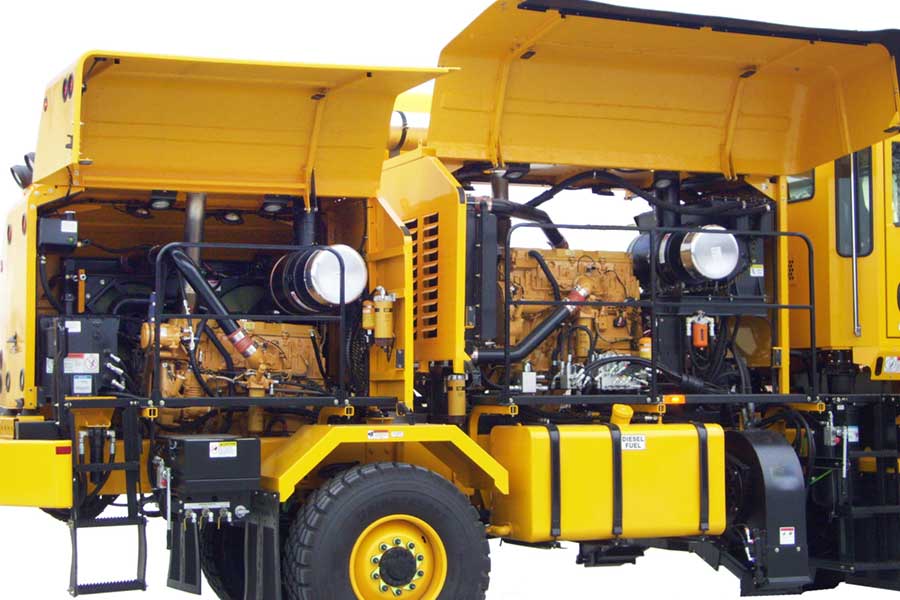

The MB4 Chassis is designed for airport snow blowers and can interchange to host plows, front brooms, tow brooms, underbody scrapers, and other equipment as desired. Both engine enclosures on the MB4 feature full length, full height butterfly side covers that rotate upward, exposing the entire engine compartment for unimpeded maintenance access.

  • Chassis with four wheel Tru-Trac™ 4 x 4 drive

  • Butterfly type hood enclosures for auxiliary and right side chassis engine cover maintenance catwalks

  • 500 HP electronic turbocharged diesel chassis engine, T4F EPA emission certified

  • Tapered spring suspension for smoother ride and increased driver control

  • Dual 125-gallon fuel tanks for drive and broom engines for up to 12 hours of operation

Equipment

  • Front Axle :

    M-B 29,000 lbs front drive/steer axle with limited slip differential

  • Rear Axle :

    Dana 23,000 lbs rear drive axle with limited slip differential

  • Wheelbase:

    Tru-Trac™ 4 x 4 drive

  • Drive Engine:

    500 HP electronic turbocharged diesel chassis engine, T4F EPA emission certified

  • Transmission:

    Allison RDS 4000, 6 speed transmission

  • Brakes :

    ABS air brake control system (4-channel) with automatic traction control

  • Fuel Capacity:

    Dual 125-gal fuel tanks for drive and broom engines for up to 12 hours of operation

  • Tires :

    445/65R22.5 LR L traction tread front and rear tires

  • Controls :

    Operator friendly, cab integrated microprocessor CAN bus controls

  • Cab:

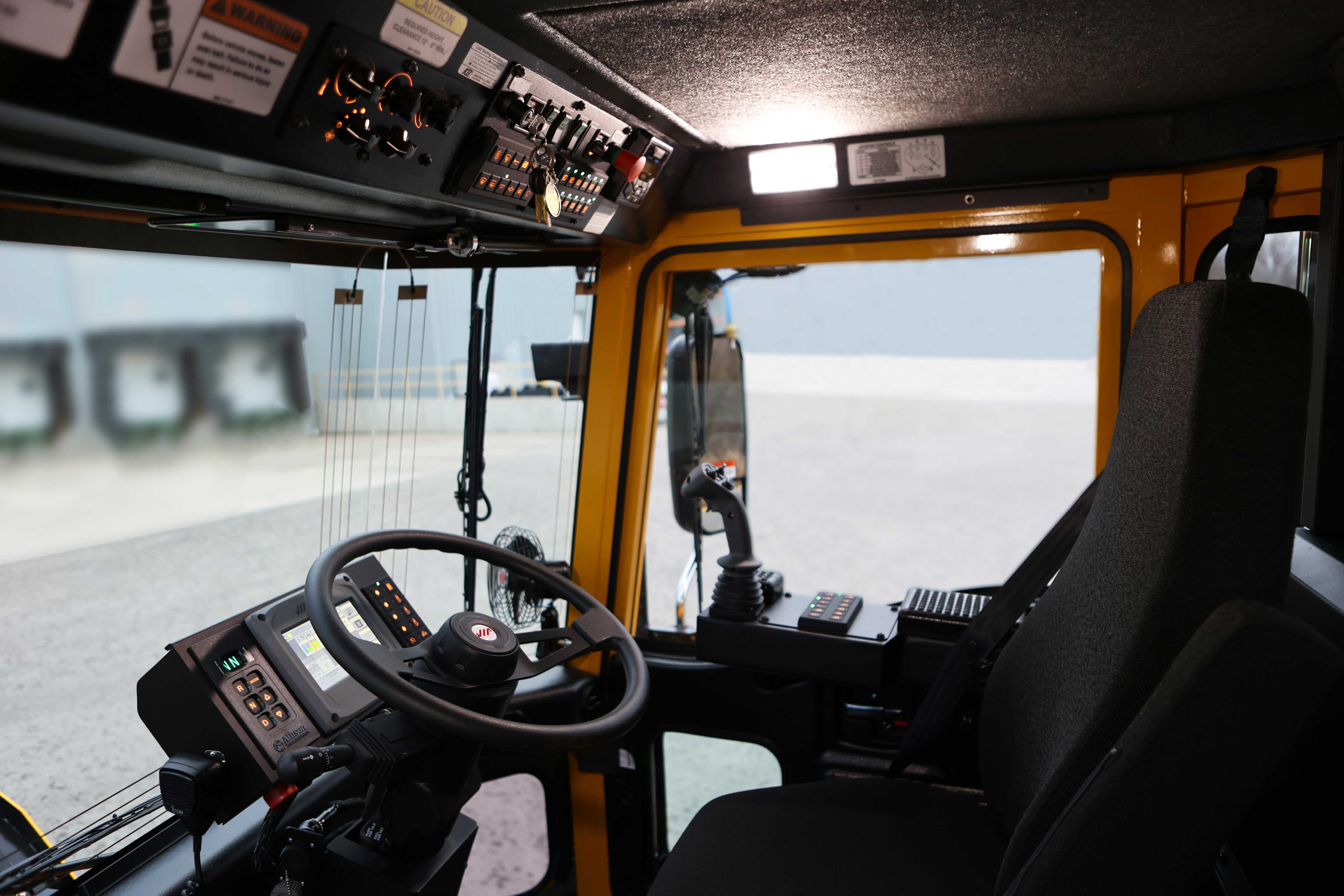

    MB two-man cab

  • Standard Accessories :

    Side light bars
    Heated windshield
    High capacity cab heater
    Heated power mirrors and power windows
