Highlights

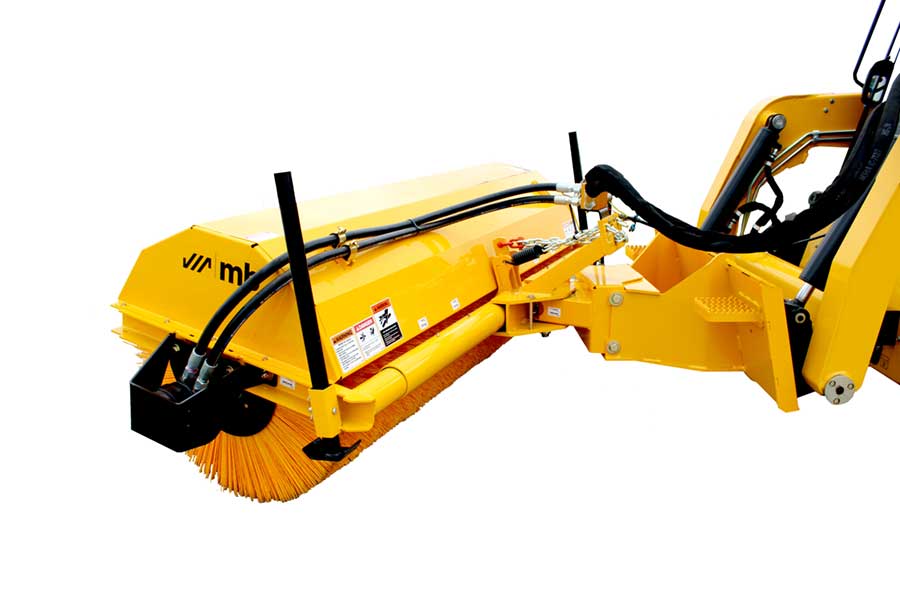

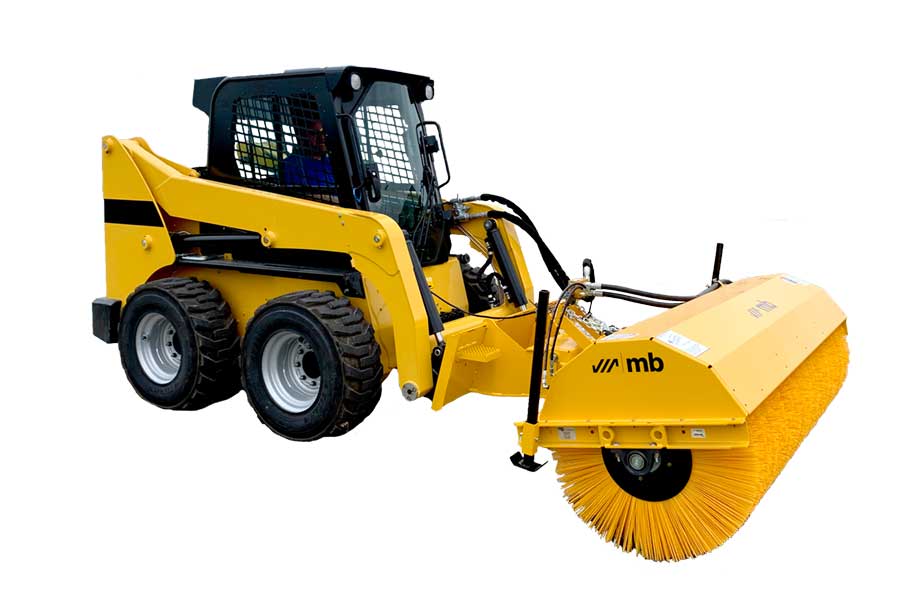

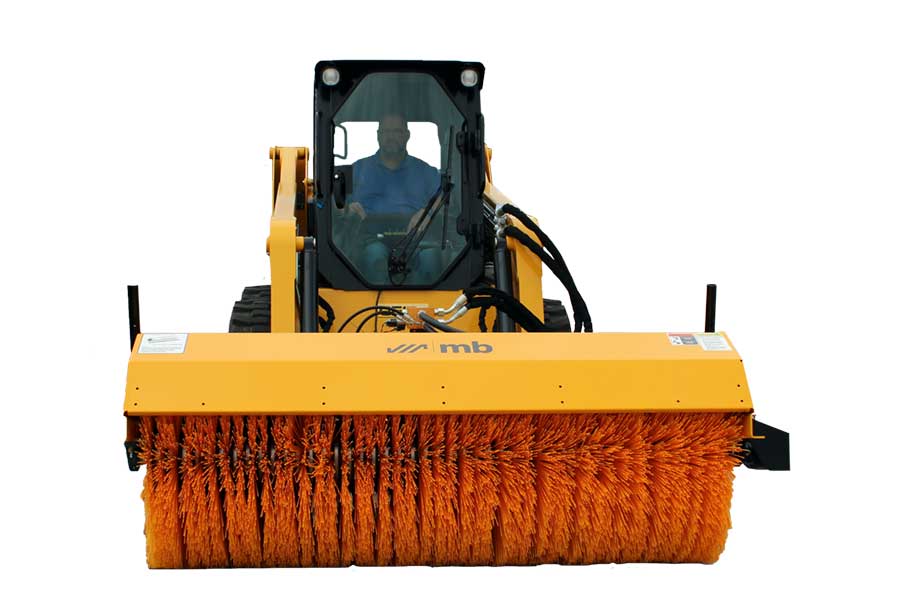

This standard hydraulic angle broom for loaders is the ideal rotary broom for any application. From snow, dirt, debris and grass this is the perfect solution for clearing and cleaning.

  • Hydraulically driven rotary angle broom.

  • Hydraulic swing capable of 30° left or right of center

  • Storage stands for simple mounting, dis-mounting, and storage

  • Spring system to dampen transportation bounce

  • Mounted with Skid Steer Quick Attach with easy entry steps

Equipment

  • Sweeping Widths Available:

    5', 6', 7', 8'

  • Brush Diameter:

    32"

  • Core Diameter:

    10"

  • Broom Speed:

    up to 200 RPM, dependent on prime mover

  • Drive:

    Hydraulic

  • Min. Hydraulic Flow:

    12 GPM (Single Standard Motor)

  • Max. Hydraulic Flow:

    20 GPM (Single Standard Motor)

  • Mounting:

    Mounted with Skid Steer Quick Attach with easy entry steps

  • Options Available:

    Dirt Deflector
    Low Flow Drive Motor
    Dual Standard Flow Drive Motors
    Dual Low Flow Drive Motors
    Sprinkler Systems
    Sight Indicators
    Oil Cooler
    Hose Kit
