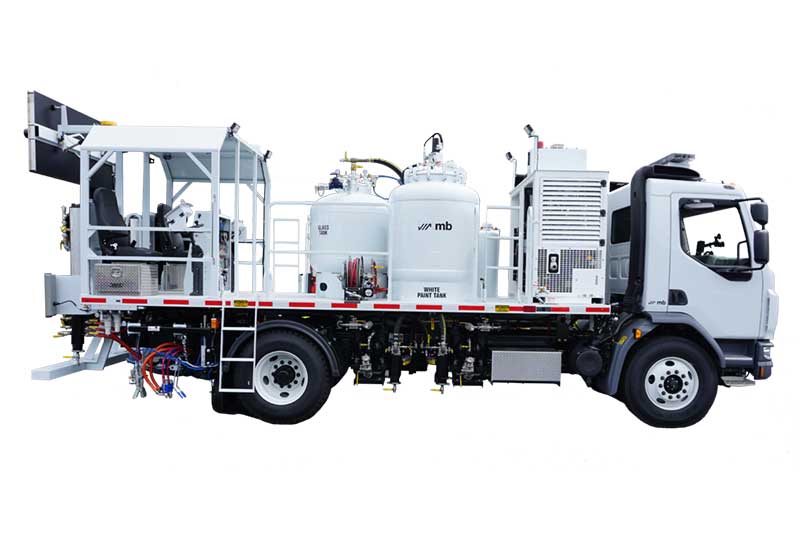

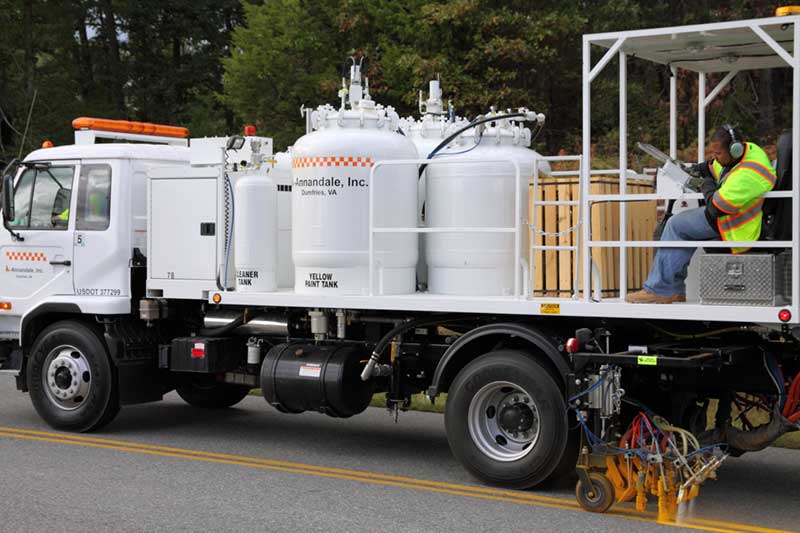

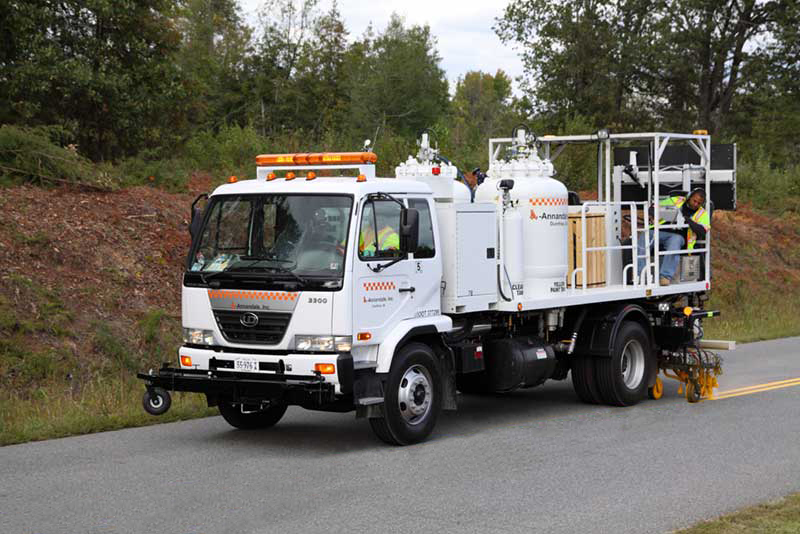

Advantage 500

Highlights

Easy to use with minimal maintenance required, the Advantage 500 road striping truck is the choice of municipalities and contractors.  With a paint capacity of 500 gallons this trusted pavement marking truck is ready for a full day of striping. The pressurized paint system delivers consistent clear road markings.

  • Advanced air compressor provides consistent marking & requires minimal maintenance

  • Reliable non clogging Kamber paint guns

  • Easily monitor progress with the LaserLine rear view camera system

Equipment

  • Chassis:

    Peterbilt 220

  • Engine:

    Paccar PC-6, 240 HP

  • Wheelbase:

    170"

  • Front Axle:

    12,000 lbs

  • Rear Axle:

    21,000 lbs

  • Brakes:

    ABS-6, Includes Air

  • Fuel Capacity:

    45 gallons

  • Tires:

    11R22.5

  • Electrical System:

    23-Volt / 120 Amp

  • Standard Accessories:

    AM/FM/CD Radio

  • Paint Capacity:

    (2) 250 gallon (ASME) paint tanks

  • Glass Tank Capacity :

    3,000 lbs with vacuum fill

  • Paint Guns :

    (6) Kamber 38-15

  • Glass Guns:

    (4) Kamber 90HO

  • Pumps:

    (2) MB diaphragm pumps

  • Air Compressor:

    Boss 250

  • Heating System:

    Engine heat with (3) heat exchangers

  • Platform:

    229" x 96"

  • Outrigger:

    Tubular, 51" stroke

  • Available Options:

    Canopy
    Canopy Accessories: (2) Dome Lights
    Solvent Tank: 20 Gallon ASME
    Guidance System: LaserLine GL3000P
    Skip Timer System: SkipLine SC-12
    Intercom System: David Clark Wired Intercom System
    Auxiliary Lighting: (1) lightbar, (3) strobe lights
    Arrowboard
    Other Accessories: (2) toolboxes, “flush on the fly,” handgun w/25' hose
