EL+

Highlights

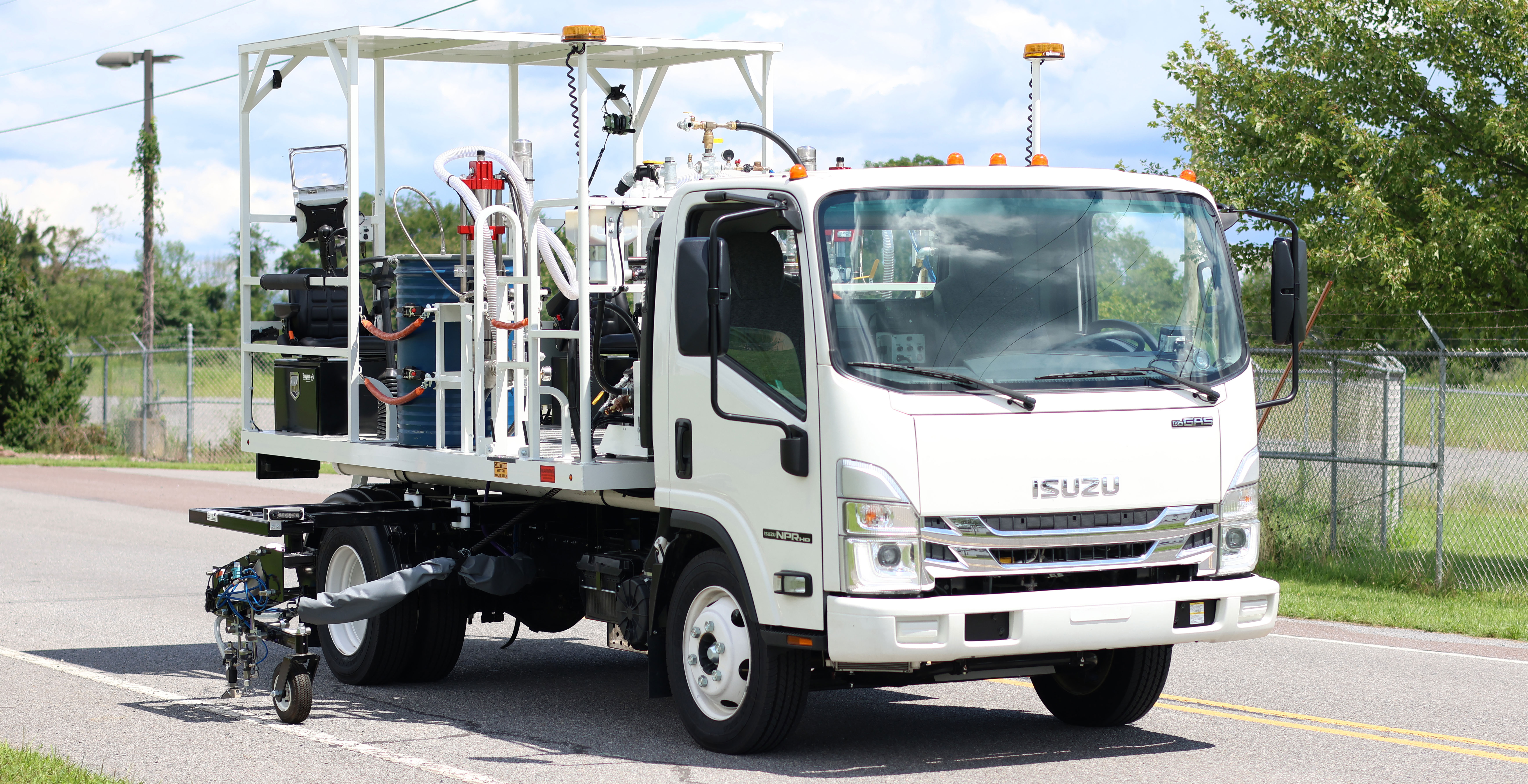

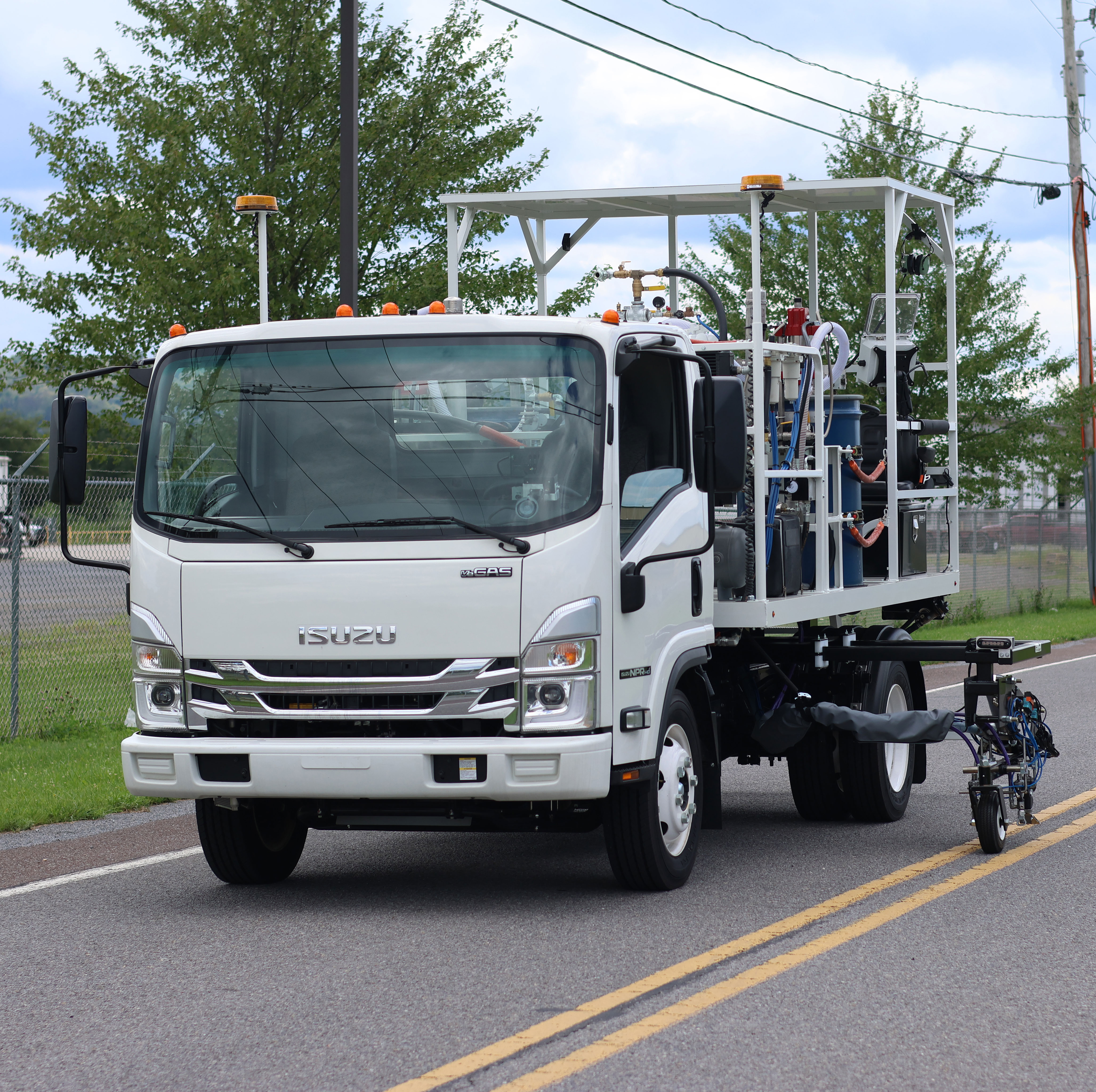

The MB EL+ is a top-of-the-line paint truck brought to you by the industry’s leading pavement marking equipment provider. Ideal for pavement marking contractors and government agencies, this compact yet powerful striper is expertly engineered for precision and efficiency on edge and center-line striping jobs. From city and neighborhood streets to rural roads, the EL+ striper is the ultimate solution for a wide variety of striping needs.

  • Expedite striping operations by procuring stocked, work-ready standardized equipment

  • Minimize equipment down time with readily available replacement parts and components

  • Achieve quicker return on investment with lower cost of ownership and value-added features

  • Quickly train operators with easy-to-use controls and no CDL requirements

Equipment

  • Paint Capacity:

    Dual 55 gal. drums (1 or 2 paint colors); 110 gal. total
    Drum draw holder with tie downs

  • Bead Tank:

    750 lb. bead tank with 2” sight glasses
    Vacuum bead loading using shop air compressor at least 60 cfm
    1-1/2” x 12’ fill hose with stinger pipe
    Standard bead bag splitter with screen

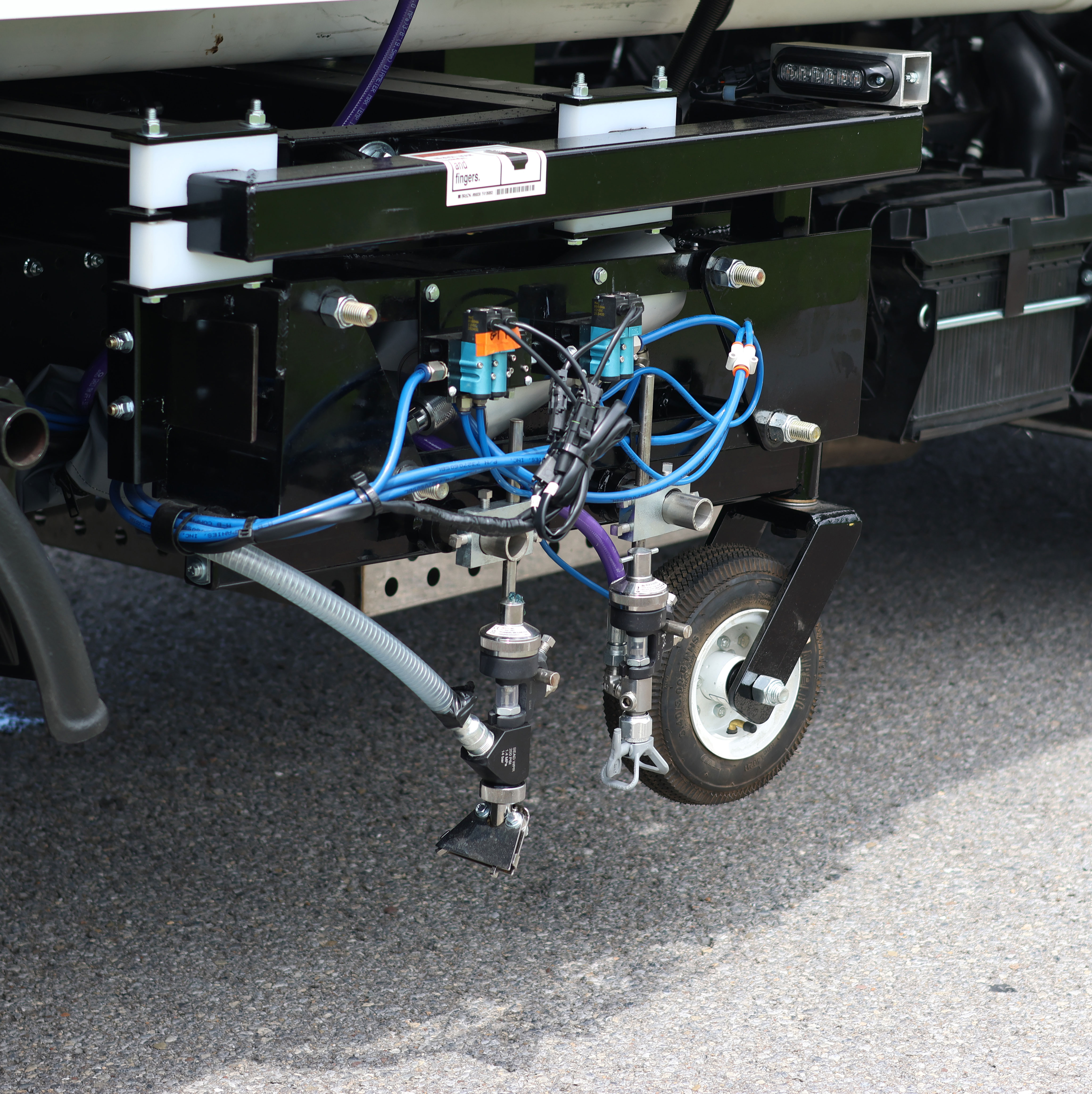

  • Material Guns:

    (3) Graco Model 238-338 bead guns and (3) Graco Model 238-377 paint guns with (2) each on left and (1) each on right

  • Available Options:

    California emissions compliant engine
    Electronic fuel-injected Honda iGX700 23hp engine for
    high altitudes
    1-1/2” x 12’ fill hose with stinger pipe and strainer
    Under-deck storage for fill hoses and stinger pipes
    Hydraulic pointer system
    Cab-mounted guidance laser
    Rear signboard (fixed or electric actuator tilt)
